Product function:

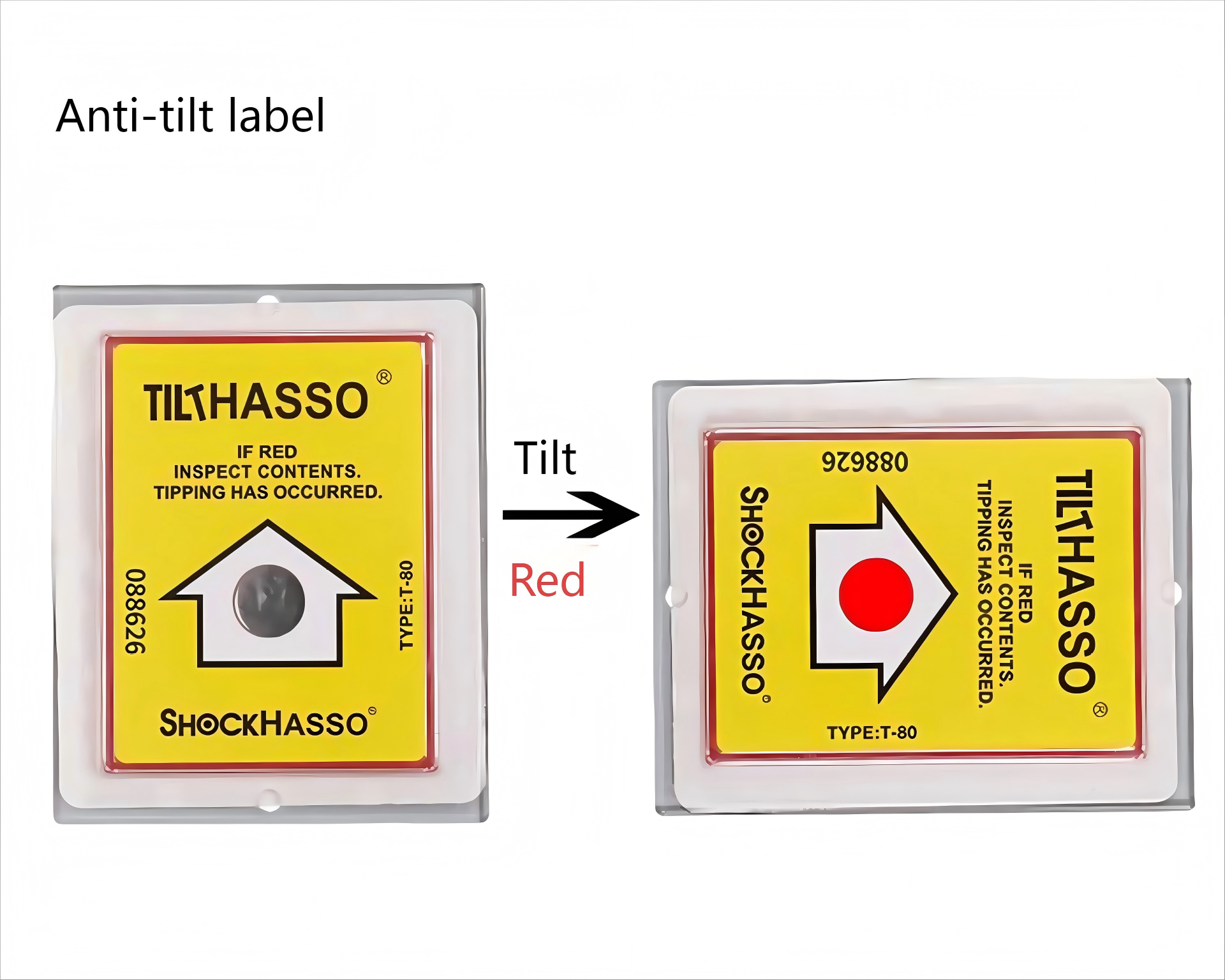

Anti-tilt label is a tipping-sensitive label that monitors whether the storage and transportation of goods meet the requirements at all times. It is attached to the outer surface of the package. Normal vibration will not cause it to work. When the tipping angle during transportation exceeds a certain limit, the transparent indicator area on the label will change from silver to red.
Scope of application:
Mainly used for large precision parts, automotive parts, refrigeration equipment, large computer systems, top-heavy equipment, network information systems, electronic communication equipment, medical equipment, large glass products, etc., which have strict requirements on the storage location and placement direction during transportation. Such as controlling and monitoring the transportation of heavy machinery, large computer equipment, circuit boards, large batteries, hydraulic presses and other product hosts.
1. Technical Specifications
1.1 Dimensions
1.2 Technical Parameters
Parameters: Specifications
Operating Temperature: -40°C ~ +60°C
Relative Humidity: 5% to 99% non-condensing
Life Cycle: Two years from the date of manufacture
Code: Yes
1.3 Detection parameters
The critical tipping value requirement of the anti-tilt label is: 80°±5%. When the tipping is less than the critical value, repeated tilting will not react; when the tipping is greater than the critical value, the tipping sensitive area on the label will change from silver-white to red and cannot be restored.
2. Label companion
Each anti-tilt label is equipped with a large label and a small label.
3. Usage method
3.1 Principle of pasting
Usually, one package is pasted with 2 anti-tilt labels, one set on each of the two adjacent sides, and pasted flush with other labels, pasted in the middle and upper part of the product packaging.
3.2 Pasting method
4. Packaging
Anti-tilt labels are packaged in paper boxes, with 100 pieces/box as the minimum unit, and 10 boxes per box.
5. Transportation
Try to put the anti-tilt indicator label in the original box for transportation. When packaging, keep the products tightly fitted so that they do not collide with each other during transportation, and try to avoid throwing the box vigorously, and be careful to avoid wrong activation.
