SHOCKHASSO®2 Anti-vibration label Second generation anti-vibration label



 Every company is on the lookout for a transportation
inspection solution that is both cost-effective and easy to use.

Therefore, anti-vibration labels will address these concerns and issues, providing the most straightforward solution possible.In a straightforward and prompt manner, inform the user whether their shipment has been subjected to an unacceptable level of impact.

It’s not in anyone’s best interest for the goods to be damaged.

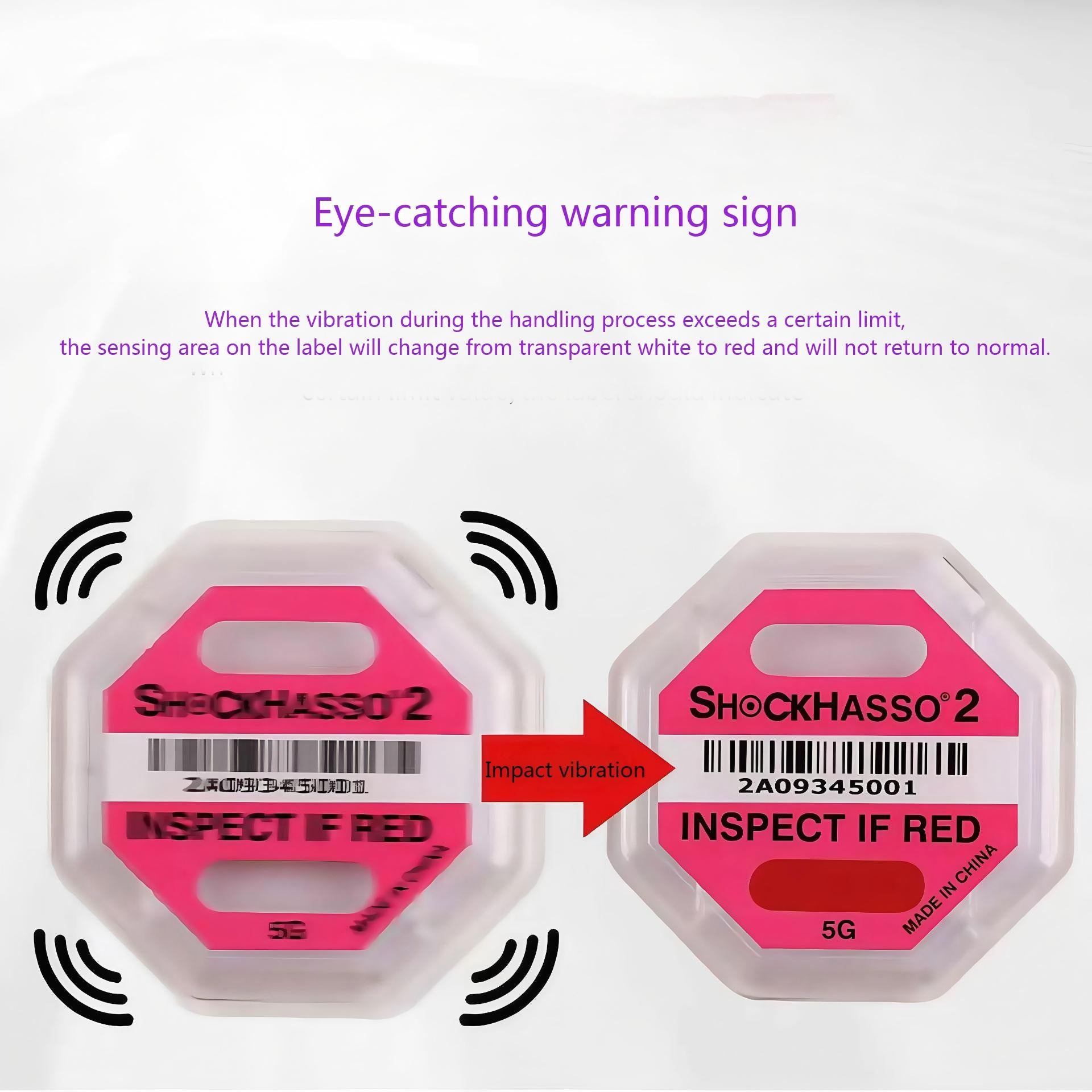

When the vibrating label is being transported and subjected to an inadmissible impact, the window will display a red alert, serving as the sole basis for customers to inspect the product upon unboxing and initiate a claim process if necessary.

The 2nd generation vibrating labels can be activated before use, and monitoring of shipping operations can begin at any time.

By focusing on monitoring in a single direction, we can address the challenges related to cost.

Choose  a  custom  direction,  add  labels,  and  ensure that at least one label is included for each axis.
Carefully read the  user manual, as the locations for applying labels vary depending on the type of cargo.

Activate manually and monitor at all times.

The situation is being monitored visually through the indicator window.

Present a fact that cannot be disputed.

The red warning indicator is quite noticeable.

It's small, lightweight, and easy to apply.

It can be used in most environments.

The reminder label instructs users on how to handle the situation properly after an impact has occurred.

Depending on the weight and volume of your shipment, you can choose the appropriate type of vibration label to ensure that your goods have indeed been subjected to the intended level of impact during transit.

The selection in the table is for reference only, as the results can vary even when subjected to the same acceleration. This is particularly true for fragile items, chips, and mechanical components.

技术参数 Technical Specifications



参数 Specifications	规格值 Specifications
可用范围 Availabe range	5-75G
使用温度 UseTemperature	-13 °F/（-25 °C）  to +176 °F/（+80 °C）
安全性 Safety	唯一序列号 Unique serial number
保证范围 Scope of Guarantee	常规值的 +/-15% ; ±  15%  of the standard value
响应度 Responsiveness	对单次冲击发生反应， 且不可复原 The system reacts to a single impact and cannot recover from it.
反应期间 During the reaction period	0.5 ~50  ms
生命周期 life cycle	出售后两年 Two years after the sale
尺寸 size	43*43*6.3mm
包装方式  Packaging method	100Pcs/BX      1600Pcs/CTN
